THIẾT BỊ LẮP RÁP TỰ ĐỘNG KHÔNG CHUẨN HHD-NCAAE168800-N

Liên hệ báo giá

Hãy để lại SĐT, Chuyên viên tư vấn của chúng tôi sẽ gọi ngay cho bạn miễn phí!!

Equipped with asmart screw feeder machine, it has a super-large silo that can hold 3000-5000 screws (M3), and has an automatic counting function to help you record the number of screws used and the number of product completed.

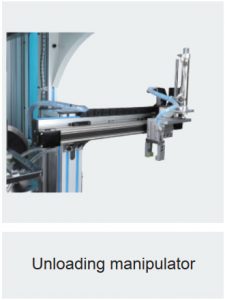

After the assembly work is completed, the automatic unloading hand will help you automatically take out the products on the fixture and put them on the production line, reducing manual operations and greatly improving efficiency.

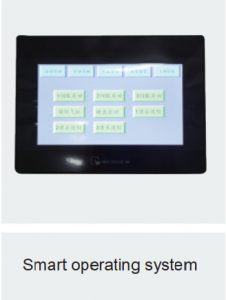

The machine adopts PLC as the intelligent control system, which provides you with a friendly man-machine interface, making your later use and maintenance very simple.

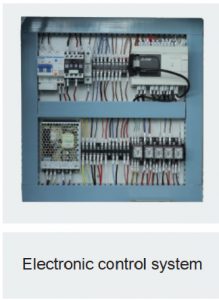

The circuit and gas circuit control system strictly implements international standards. The electric circuit is separated from the air circuit, the strong current is separated from the weak current, and all the terminals are labeled to ensure the long-term use of the equipment and easy maintenance in the later period.

PRODUCT ADVANTAGES	EQUIPMENT PARAMETER
Fully automatic assembly production process,no need for personnel to operate the machine, faster speed and higher efficiency. The operation is simple, just put the product into the fixture, the product will automatically reach the designated position, and start the assembly work. With automatic detect function, it can accurately detect whether the product has reached the designated position, and start the assembly work. After completion, the product will takeaway automatically without manual labor. The wear-resistant processed parts are made of S-136 steel material, and heat treatment processensures that the service life of the equipment is increased. When there is an unqualified process in the production link, the equipment has an automatic alarm function.	CATEGORY	CONTENT
	Work cycle	4s-5s（1product）
	Size(mm)	150015001900
	Weight	350KG
	Voltage	AC220V
	Power	2000W/h
	Air pressure	0.5-0.7MPa
	Tightening tool	Smart Servo
	Control system	PLC
	Guide rail	HIWIN
	Screw feeder	Air blowing
	Adapter screw	M1-M6
	Capacity of Silo	800-8000pcs
